Industrial Desiccant Air Dryer Manufacturer Low Dew Point

Modern Regeneration compressor air dryer PB series

The working principle of a low-temperature adsorption dryer is based on the use of molecular sieves as an adsorbent. In this process, the adsorbent materials absorb all the water vapor from the compressed air stream, leaving behind dry air. The dryer then regenerates the adsorbent material by heating it to a high temperature, which drives out the accumulated moisture, enabling it to be used again. This type of dryer is reliable, efficient, and ensures stable performance, making it an ideal choice for various industrial applications.





Air capacity range:0.5-600Nm3/min ,working pressure range:0.6-1.6Mpa,dew point:-20~ -70℃，

regenerative desiccant air dryer :

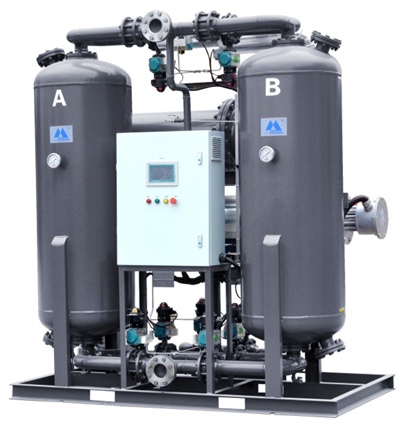

Working Principle of heatless adsorption air dryer Heated Adsorption air dryer

With taking advantage of the surface absorbability of porous solid material, the heated regeneration air dryer is a kind of equipment, which can absorb the moisture to get satisfied air with lower dew point, air dryer and better cleanliness.

It adopts active alumina, whose diameter is almost same with water molecule, as the adsorbent, it’s also in line with the world advanced pressure swing adsorption (PSA) principle, that is to say, when absorbing in normal temperature, the pressure of water molecule in air is big than that in desiccant, so the former will be sucked into the desiccant, then condense to water drop, meanwhile the liberated heat will be stored at the upside of the tower. As regenerating, in order to temporary lower the desiccant absorption ability to let the water molecule effuse out, about 7% dry air will go through the regeneration tower slowly after the air being heated up to 150℃, the stored heat also will take part in regeneration process for energy saving. For the circular employ of absorption-regeneration-absorption, the desiccant dries compressed air continuously to get deeply dried air. The technical performance already has reached the international high-level standard. It can be you ideal equipment with dew point lowering than -40℃.

The working alternating cycle of twin tower can ensure stable output of satisfied compressed air. Its pressure dew point which can make up to -40℃ is definitely can obtain deeply dry and oil-free compressed air with high purity to meet the customer high requirements. Due to the heater, it can keep good regeneration performance with less purge air loss.

Large heating adsorption Adsorption Compressed air dryer Specifications

Design conditions: working pressure: 7bar, inlet temperature: 38℃, pressure dew point: -20℃

adsorption dryer for air compressor characteristics

High efficiency and energy saving;

Working pressure dew point -20ºC~-40ºC;

Equipped with PLC controller with excellent performance, which can realize chain function;

High-quality switching valve, stable and reliable, can ensure the integrity of the work process and prolong the working life of components;

Choosing Special adsorbents with high hygroscopic uniform shape and size, high strength, low output dew point, less dust generated, and long service life

Special adsorbent

diffuser

solenoid valve

01. Pre-sale: The main responsibilities of the sales and Research Institute are to review the technical and business solutions, provide business and technical support to customers, and can accurately and timely solve all business and technical requirements before sales.

02. On sale: The main responsibilities of the Ministry of Commerce are order management and customer management. The core of order management is order delivery, business review of the scheme, and order. Timely solve the problems in the execution of the contract, and communicate with customers in order processing and delivery.

03. After-sale: Strong and perfect after-sales service network, there are 9 customer service centers in major regions of China, each center has professional service engineers, a total of more than 50 people, quickly and timely solve problems in after-sales service, such equipment start-up debugging, and troubleshooting.

If you need, please feel free to contact us for more information. Email: sales4@hzsljh.com

Q1. Are you a trading company or manufacturer?

A: We are nearly 30 years professional manufacturer specializing in air dryers.

And we trade our products with our clients directly.

Q2. Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable.

Q3. How about after-service?

A: We have 9 offices in China and also have an oversea after-service team.
