Product Characteristics

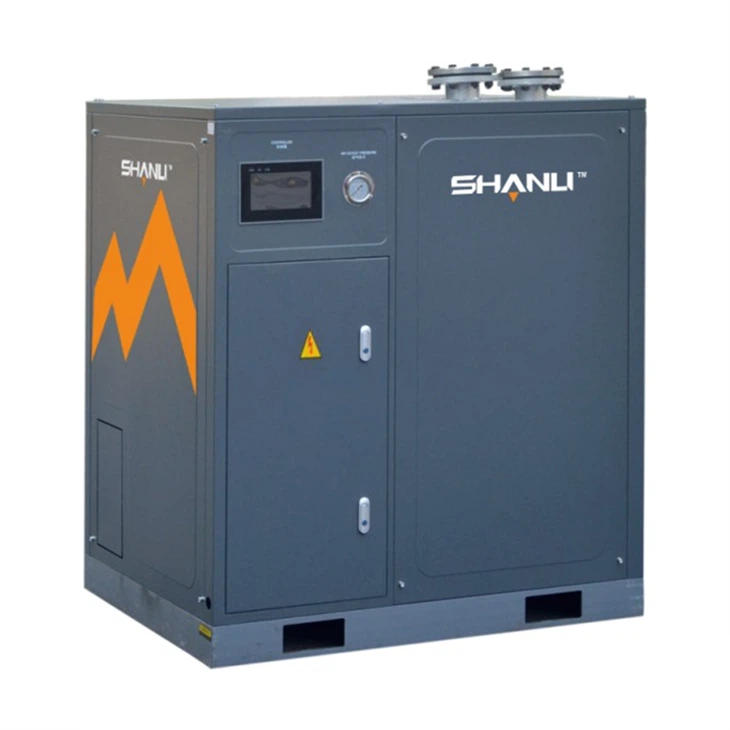

This low-noise refrigerated air dryer is specially designed for working places requiring quiet environments, focusing on noise reduction design while ensuring efficient drying performance, with an operating noise lower than 55 decibels. It adopts a silent refrigeration compressor, a built-in sound-absorbing cotton, and a shock-absorbing base, which effectively reduces vibration and noise generated during equipment operation, avoiding noise pollution to the surrounding environment. The dryer's air duct and heat exchange system are optimized to make air flow more smoothly and reduce wind noise. It has excellent drying effect, reducing the dew point of compressed air to 2–5℃, meeting the needs of various pneumatic equipment for dry air. The equipment has a compact structure, small floor space, and is easy to install and move. It has low energy consumption, stable performance, and long-term continuous operation without failure. It is widely used in hospitals, laboratories, office areas, precision instrument manufacturing, libraries, and other places requiring quiet and dry compressed air, providing a quiet and stable working environment while ensuring air quality.
Working Principle
The amount of water vapor in the compressed air is determined by the temperature of the compressed air: under the condition that the pressure of the compressed air is basically unchanged, reducing the temperature of the compressed air can reduce the content of water vapor in the compressed air, and the excess water vapor will condense into liquid.
Products Specification
Applicable Working Conditions
|
Max inlet temp |
60°C |
Pressure dew point |
2℃~10℃ |
|
Environment temperature range |
5°C-50°C |
Cooling mode |
Air-cooled |
|
Pressure range |
0.6-1.6Mpa ( 0.5-12Nm³/min ) |
Cryogen |
0.5~2 Nm/min is R134a, 3~12Nm3/min is R410a, |
|
0.6-1.0 Mpa (15Nm³/min and above ) |
15~80Nm/min is R407C, 80 Nm/min and above is R22 |
Design Working Conditions
|
Inlet air temperature |
38°C |
Working pressure |
0.7Mpa |
|
Ambient temperature |
38℃ |
Cooling water temperature |
≤32℃ |
Our Service
1.Original spare parts supply
We guarantee stable supply of original compressors, filters, fans, drain valves and control boards, ensuring long stable working life and fast replacement worldwide.
2.Regular preventive maintenance suggestions
We send regular maintenance reminders including filter replacement, condenser cleaning, drain inspection and dew point checking to extend dryer service time and reduce failure risk.
3.Fault diagnosis and quick troubleshooting
Professional engineers support remote fault diagnosis. We analyze alarm codes, unstable dew point, high temperature protection and freezing problems and give clear solving plans soon.
FAQ
1. Q: How to select dryer model?
A: Based on max air flow, inlet temp/pressure, required dew point.
2. Q: Advantages of VFD dryer?
A: Energy saving at low load, stable dew point, low failure rate.
3. Q: Energy saving tips?
A: Ensure good ventilation, clean heat exchangers, use zero-air-loss drains, match load.
4. Q: Difference between high-temp and standard dryer?
A: High-temp model withstands higher inlet temperature without capacity loss.
5. Q: Typical service life?
A: 5–8 years with proper maintenance; core components up to 10 years.
