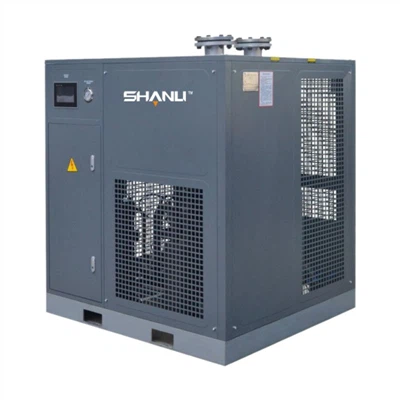

Air-cooled Refrigerated Air Dryer
The Air-cooled Refrigerated Air Dryer manufacture!
Hangzhou Shanli Purify Equipment Corporation is Advanced Manufacturing Base According to the needs of users, it can provide air cooled, water cooled, standard, fluorine-free, high temperature, instrument, single-chip microcomputer, programmable, industrial computer, frequency conversion control, high pressure,explosion-proof and other types and characteristics of compressed air purification equipment.
Our Certificate
CE certification,ISO9001 certificate, GCCA certified frozen products.
Production Market
We are sold well in more than 30 provinces and cities in China, and nearly 10000 users have played an active role in national key projects. The products have been exported to Pakistan in complete sets for many times West, Australia, Iran, India, Sudan, Indonesia, Vietnam, Saudi Arabia and other Southeast Asia, the Middle East, Central Asia and Africa.
Our Service
The main responsibilities of the sales and Research Institute are to review the technical and business solutions, provide business and technical support to customers, and can accurately and timely solve all business and technical requirements before sales.
|
Item Model |
Air capacity |
Voltage |
Fan |
Air |
N.W |
L |
W |
H |
Air volume |
|
SDLF-0.5 |
0.65 |
220 |
40 |
G1" |
34 |
400 |
560 |
730 |
410 |
|
SDLF-1 |
1.2 |
220 |
40 |
G1" |
36 |
400 |
560 |
730 |
410 |
|
SDLF-2 |
2.5 |
220 |
50 |
G1" |
45 |
520 |
640 |
890 |
820 |
|
SDLF-3 |
3.6 |
220 |
85 |
G1" |
54 |
520 |
640 |
890 |
1000 |
|
SDLF-4.5 |
5.0 |
220 |
165 |
G1-1/2" |
60 |
540 |
700 |
1000 |
1850 |
|
SDLF-6 |
6.8 |
220 |
165 |
G1-1/2" |
65 |
540 |
700 |
1000 |
1850 |
|
SDLF-8 |
8.5 |
220 |
170 |
G2" |
76 |
610 |
900 |
1070 |
3700 |
|
SDLF-10 |
10.9 |
380/220 |
150 |
G2" |
88 |
610 |
900 |
1070 |
3700 |
|
SDLF-12 |
12.8 |
380/220 |
150 |
G2" |
88 |
610 |
900 |
1070 |
3700 |
|
SDLF-15 |
16 |
380/220 |
380 |
DN65 |
255 |
1170 |
920 |
1420 |
7600 |
|
SDLF-20 |
22 |
380/220 |
380 |
DN65 |
260 |
1170 |
920 |
1420 |
7600 |
|
SDLF-25 |
26.8 |
380/220 |
460 |
DN80 |
290 |
1170 |
920 |
1420 |
9000 |
|
SDLF-30 |
32 |
380/220 |
840 |
DN80 |
350 |
1400 |
1200 |
1600 |
12500 |
|
SDLF-40 |
43.5 |
380/220 |
1100 |
DN100 |
485 |
1400 |
1200 |
1600 |
15000 |
|
SDLF-50 |
53 |
380/220 |
920 |
DN100 |
800 |
1600 |
1200 |
1600 |
18000 |
|
SDLF-60 |
67 |
380/220 |
920 |
DN125 |
1000 |
1600 |
1400 |
1650 |
18000 |
|
SDLF-80 |
90 |
380/220 |
2200 |
DN125 |
1280 |
1800 |
1500 |
1770 |
30000 |
|
Refrigerated vs. Desiccant Air Dryer Quick Reference Chart |
||
|
Desiccant Air Dryers |
Refrigerated Air Dryers |
|
|
Application |
Metal finishing, paint lines, pharmaceutical, medical, food processing and other applications requiring ultra-dry air (ISO Quality Classes 1, 2 & 3); low-temperatures below freezing applications |
Standard manufacturing and service application removes liquid water only(ISO Quality Classes 4, 5 & 6) |
|
Typical Dew Point |
-40°F to -100°F |
+38°F |
|
Initial Investment Cost |
High |
Low |
|
Operating Cost |
High to Moderate |
Relatively Low |
|
Maintenance Cost |
Moderate |
Low |
Advantages of Air-cooled Refrigerated Air Dryer
Energy saving
Refrigerated air dryers consume less energy than conventional air dryers. They are designed to minimize the process loss of cooling capacity and improve the recycling of cooling capacity. The aluminum alloy three-in-one heat exchanger used in refrigerated air dryers reduces the total input power by up to 50% while maintaining the same processing capacity. This makes refrigerated air dryers an excellent choice for energy-conscious industrial operations.
Efficient
Refrigerated air dryers come equipped with an integrated heat exchanger that is designed to exchange heat evenly inside. The heat exchanger is equipped with guide fins that make the compressed air exchange heat more efficiently. The built-in steam-water separation device features a stainless steel filter that ensures thorough water separation. Together, these features make refrigerated air dryers highly efficient in removing moisture from compressed air.
Intelligent
Refrigerated air dryers feature multi-channel temperature and pressure monitoring that ensures stable and reliable operation. The real-time display of dew point temperature helps to prevent damage to equipment and products. The accumulated running time is automatically recorded, ensuring timely maintenance and replacement of equipment. The self-diagnosis function of refrigerated air dryers quickly identifies problems and corresponding alarm codes are displayed for easy troubleshooting.refrigerated air dryers feature automatic protection mechanisms that prevent equipment damage and downtime.
Environmental friendly
In response to the global environmental concerns, refrigerated air dryers use environmentally friendly refrigerants such as R134a and R410a. These refrigerants have zero damage to the atmosphere and comply with the International Montreal Protocol, making them an ideal choice for industrial operations that are environmentally conscious.
Good corrosion resistance
Refrigerated air dryers feature a plate heat exchanger that adopts an aluminum alloy or stainless steel structure. This feature provides good corrosion resistance and prevents secondary pollution of compressed air. These refrigerated air dryers can be used in various special occasions where corrosive gases are present or in the food and pharmaceutical industries that require stringent requirements.
Steps for Using a Refrigerated Air Dryer
Installation
Proper installation is key to the effective operation of a refrigerated air dryer. It should be installed in a well-ventilated location, free from extreme temperatures or direct sunlight. Positioning the dryer downstream of the air compressor and any other filtration systems ensures optimal moisture removal.
Setting the Dew Point
The dew point is the temperature at which moisture condenses from the air. refrigerated air dryers lower the dew point to around 35°F (2°C). Adjusting the dew point setting helps achieve the desired level of dryness in the compressed air.
Regular Maintenance
To maintain efficiency, regular maintenance of the refrigerated air dryer is essential. This includes checking and replacing filters, inspecting refrigerant levels, and ensuring that condensate drains function properly. Regular upkeep prevents reduced performance and potential damage to the dryer.
Monitoring Performance
Consistently monitor the refrigerated air dryer's performance. Regularly check the pressure dew point to ensure the dryer is removing moisture effectively. Any significant changes in the dew point may signal a problem that requires immediate attention.
Packing Details: Plywood crate pallet plus foam board and bubble film, Full closed wooden case. 1pcs/each package.
Shipping method: By sea, by LCL/FCL or as requested.
Delivery method: FOB, CFR, CIF and EXW etc.
Our factory
In 2016,the company formally moved in to Renhe advanced manufacturing base in Yuhang District. The newly moved office area is spacious and bright with complete equipped facilities, which will greatly improve the office environment and work efficiency of all employees, create a good service environment for customers and enhance the company image.
