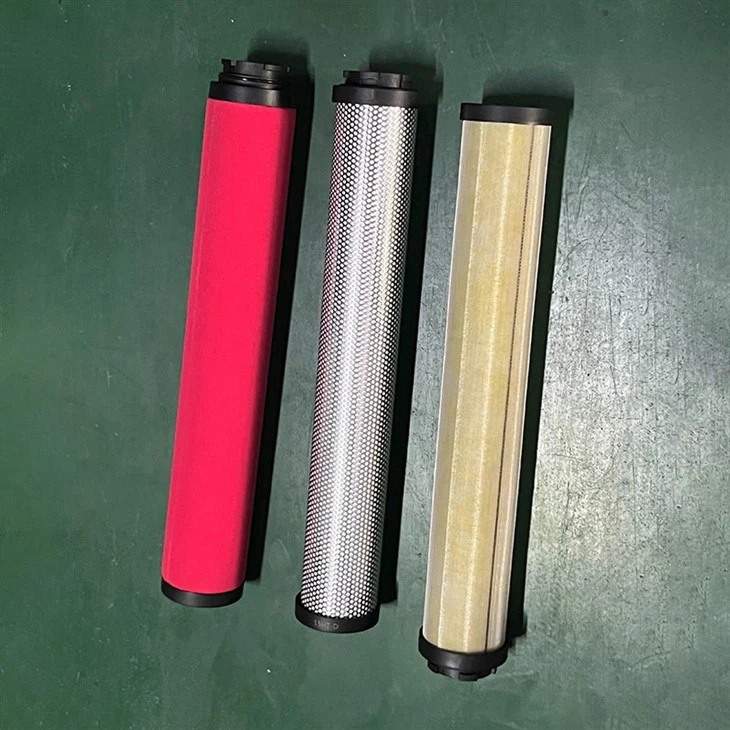

Electrostatic Dust Filter Air Dust Filter Machine Sanitary Compressed Air Filter
Electrostatic Dust Filter Air Dust Filter Machine Sanitary Compressed Air Filter
Electrostatic Dust Filter Air Dust Filter Machine Sanitary Compressed Air Filter
Electrostatic Dust Filter Air Dust Filter Machine Sanitary Compressed Air Filter
Electrostatic Dust Filter Air Dust Filter Machine Sanitary Compressed Air Filter
Electrostatic Dust Filter Air Dust Filter Machine Sanitary Compressed Air Filter
Electrostatic Dust Filter Air Dust Filter Machine Sanitary Compressed Air Filter
Electrostatic Dust Filter Air Dust Filter Machine Sanitary Compressed Air Filter
Products Video
Products Description
Product Characteristics
●
The operation of a water-cooled refrigerated air dryer is relatively simple. The compressor pulls in ambient air, compressing and heating it in the process. The hot, moisture-laden air then flows through a heat exchanger, where it is cooled by a refrigerant before it enters the dryer. The cooled air then passes through a series of filters, removing any remaining contaminants, before exiting the dryer as dry, clean air.
Working Principle
The amount of water vapor in the compressed air is determined by the temperature of the compressed air: under the condition that the pressure of the compressed air is basically unchanged, reducing the temperature of the compressed air can reduce the content of water vapor in the compressed air, and the excess water vapor will condense into liquid.
Products Specification
Applicable Working Conditions
|
Max inlet temp |
60°C |
Pressure dew point |
2℃~10℃ |
|
Environment temperature range |
5°C-50°C |
Cooling mode |
Air-cooled |
|
Pressure range |
0.6-1.6Mpa ( 0.5-12Nm³/min ) |
Cryogen |
0.5~2 Nm/min is R134a, 3~12Nm3/min is R410a， |
|
0.6-1.0 Mpa (15Nm³/min and above ) |
15~80Nm/min is R407C, 80 Nm/min and above is R22 |
Design Working Conditions
|
Inlet air temperature |
38°C |
Working pressure |
0.7Mpa |
|
Ambient temperature |
38℃ |
Cooling water temperature |
≤32℃ |

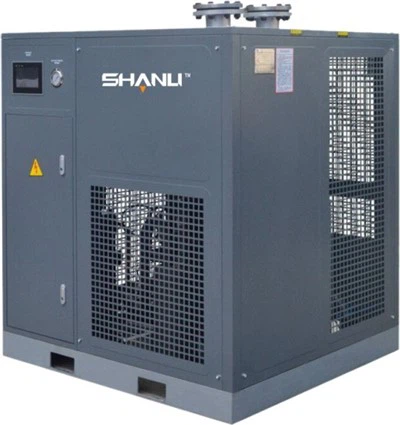

Air dryer for compressor refrigerated (plate fin type)
|
Item Model |
Air capacity |
Voltage |
Fan |
Air |
N.W |
L |
W |
H |
Air volume |
|
SDLF-0.5 |
0.65 |
220 |
40 |
G1" |
34 |
400 |
560 |
730 |
410 |
|
SDLF-1 |
1.2 |
220 |
40 |
G1" |
36 |
400 |
560 |
730 |
410 |
|
SDLF-2 |
2.5 |
220 |
50 |
G1" |
45 |
520 |
640 |
890 |
820 |
|
SDLF-3 |
3.6 |
220 |
85 |
G1" |
54 |
520 |
640 |
890 |
1000 |
|
SDLF-4.5 |
5.0 |
220 |
165 |
G1-1/2" |
60 |
540 |
700 |
1000 |
1850 |
|
SDLF-6 |
6.8 |
220 |
165 |
G1-1/2" |
65 |
540 |
700 |
1000 |
1850 |
|
SDLF-8 |
8.5 |
220 |
170 |
G2" |
76 |
610 |
900 |
1070 |
3700 |
|
SDLF-10 |
10.9 |
380/220 |
150 |
G2" |
88 |
610 |
900 |
1070 |
3700 |
|
SDLF-12 |
12.8 |
380/220 |
150 |
G2" |
88 |
610 |
900 |
1070 |
3700 |
|
SDLF-15 |
16 |
380/220 |
380 |
DN65 |
255 |
1170 |
920 |
1420 |
7600 |
|
SDLF-20 |
22 |
380/220 |
380 |
DN65 |
260 |
1170 |
920 |
1420 |
7600 |
|
SDLF-25 |
26.8 |
380/220 |
460 |
DN80 |
290 |
1170 |
920 |
1420 |
9000 |
|
SDLF-30 |
32 |
380/220 |
840 |
DN80 |
350 |
1400 |
1200 |
1600 |
12500 |
|
SDLF-40 |
43.5 |
380/220 |
1100 |
DN100 |
485 |
1400 |
1200 |
1600 |
15000 |
|
SDLF-50 |
53 |
380/220 |
920 |
DN100 |
800 |
1600 |
1200 |
1600 |
18000 |
|
SDLF-60 |
67 |
380/220 |
920 |
DN125 |
1000 |
1600 |
1400 |
1650 |
18000 |
|
SDLF-80 |
90 |
380/220 |
2200 |
DN125 |
1280 |
1800 |
1500 |
1770 |
30000 |
Products Details
Title
Title
Title
Our Service
01. Pre-sale: The main responsibilities of the sales and Research Institute are to review the technical and business solutions, provide business and technical support to customers, and can accurately and timely solve all business and technical requirements before sales.
02. On sale: The main responsibilities of the Ministry of Commerce are order management and customer management. The core of order management is order delivery, business review of the scheme, and order. Timely solve the problems in the execution of the contract, and communicate with customers in order processing and delivery.
03. After-sale: Strong and perfect after-sales service network, there are 9 customer service centers in major regions of China, each center has professional service engineers, a total of more than 50 people, quickly and timely solve problems in after-sales service, such equipment start-up debugging, and troubleshooting.
If you need, please feel free to contact us for more information. Email: shanli@hzsljh.com
FAQ
Q1. Are you a trading company or manufacturer?
A: We are nearly 30 years professional manufacturer specializing in air dryers.
And we trade our products with our clients directly.
Q2. Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable.
Q3. How about after-service?
A: We have 9 offices in China and also have an oversea after-service team.
