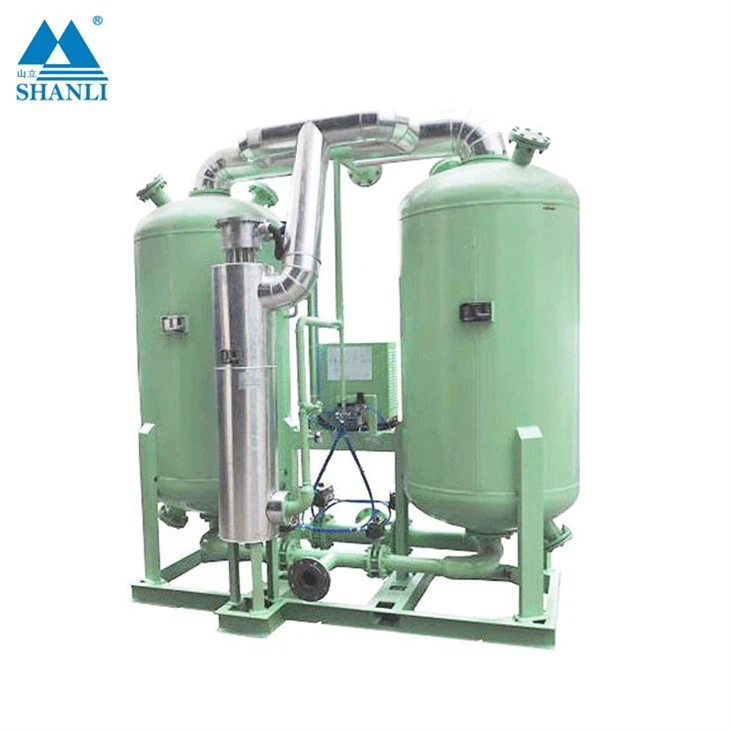

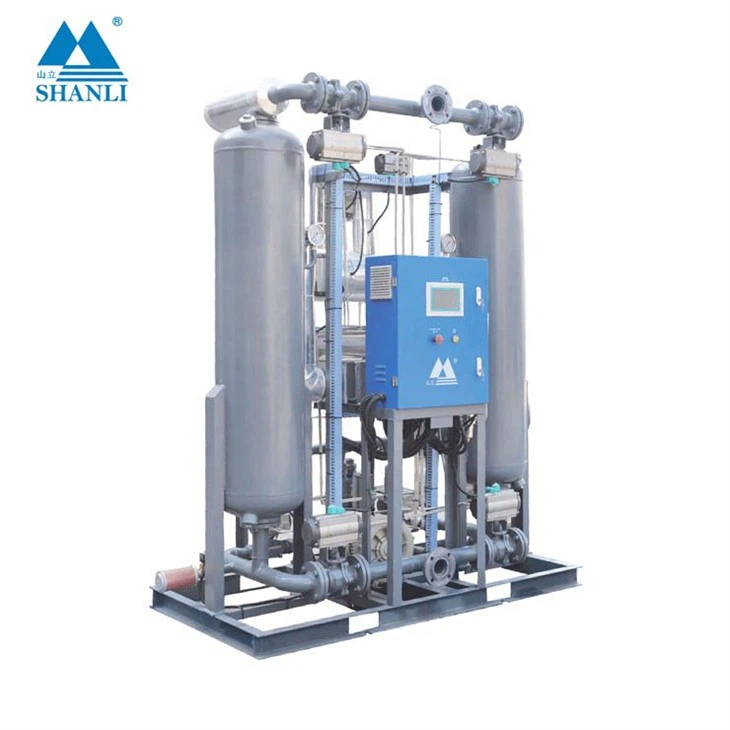

Name: China Cheap Haur Dryer Dry Tech Desicant Air Dryer Manufacturers Suppliers Factory - Shanli Purify Equipment
Brand: SHANLI
SKU: 219325535

Shanli products are widely used in shipbuilding, steel, aerospace, power, electronics, metallurgy, machinery, automobile manufacturing, petroleum, chemical industry, textile, chemical ﬁber, light industry, paper making, rubber, instrument, food, air separation, cigarette, medicine, biology, daily chemical and other industries. They sell well in more than 30 provinces and cities across the country, with nearly 10000 users. They play an active role in national key projects. The products have been exported in complete sets to India, Sudan, Brazil and other countries for many times

Send Inquiry

Product Introduction

Products Video

Products Description

Product Characteristics

10 minutes standard cycle;
Working pressure dew point -20℃~-40℃;
High-quality switching valve, stable and reliable, can ensure the integrity of the work process and prolong the working life of compo-nents;
Choosing Special adsorbents with highly hygroscopic , uniform shape and size, high strength, low output dew point, less dust generated, and long service life;
The amount of regeneration air can be adjusted according to the operating load requirements of the equipment to achieve energysaving eﬀect
Reasonable heater design, good dehumidiﬁcation and regeneration eﬀect, low air consumption, high heating eﬃciency, and minimizedenergy consumption;
Programmable microcomputer controller, that adsorption and regeneration time can be adjusted to achieve your satisfactory dew point value;

Working Principle

The amount of water vapor in the compressed air is determined by the temperature of the compressed air: under the condition that the pressure of the compressed air is basically unchanged, reducing the temperature of the compressed air can reduce the content of water vapor in the compressed air, and the excess water vapor will condense into liquid.

Products Specification

Applicable Working Conditions

Max inlet temp	60°C	Pressure dew point	2℃~10℃
Environment temperature range	5°C-50°C	Cooling mode	Air-cooled
Pressure range	0.6-1.6Mpa ( 0.5-12Nm³/min )	Cryogen	0.5~2 Nm/min is R134a, 3~12Nm3/min is R410a,
Pressure range	0.6-1.0 Mpa (15Nm³/min and above )	Cryogen	15~80Nm/min is R407C, 80 Nm/min and above is R22

Design Working Conditions

Inlet air temperature	38°C	Working pressure	0.7Mpa
Ambient temperature	38℃	Cooling water temperature	≤32℃

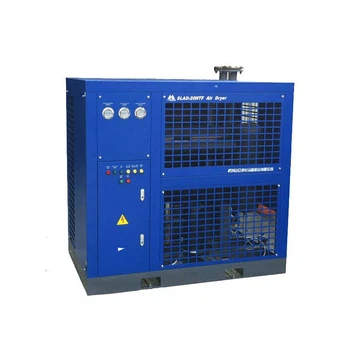

Air dryer for compressor refrigerated (plate fin type)

Item Model	Air capacity (Nm³/min)	Voltage (V)	Fan Power (W)	Air connection pipe diameter	N.W (kg)	L (mm)	W (mm)	H (mm)	Air volume (Nm³/h)
SDLF-0.5	0.65	220	40	G1"	34	400	560	730	410
SDLF-1	1.2	220	40	G1"	36	400	560	730	410
SDLF-2	2.5	220	50	G1"	45	520	640	890	820
SDLF-3	3.6	220	85	G1"	54	520	640	890	1000
SDLF-4.5	5.0	220	165	G1-1/2"	60	540	700	1000	1850
SDLF-6	6.8	220	165	G1-1/2"	65	540	700	1000	1850
SDLF-8	8.5	220	170	G2"	76	610	900	1070	3700
SDLF-10	10.9	380/220	150	G2"	88	610	900	1070	3700
SDLF-12	12.8	380/220	150	G2"	88	610	900	1070	3700
SDLF-15	16	380/220	380	DN65	255	1170	920	1420	7600
SDLF-20	22	380/220	380	DN65	260	1170	920	1420	7600
SDLF-25	26.8	380/220	460	DN80	290	1170	920	1420	9000
SDLF-30	32	380/220	840	DN80	350	1400	1200	1600	12500
SDLF-40	43.5	380/220	1100	DN100	485	1400	1200	1600	15000
SDLF-50	53	380/220	920	DN100	800	1600	1200	1600	18000
SDLF-60	67	380/220	920	DN125	1000	1600	1400	1650	18000
SDLF-80	90	380/220	2200	DN125	1280	1800	1500	1770	30000

Products Details

Title

Our Service

01. Pre-sale: The main responsibilities of the sales and Research Institute are to review the technical and business solutions, provide business and technical support to customers, and can accurately and timely solve all business and technical requirements before sales.

02. On sale: The main responsibilities of the Ministry of Commerce are order management and customer management. The core of order management is order delivery, business review of the scheme, and order. Timely solve the problems in the execution of the contract, and communicate with customers in order processing and delivery.

03. After-sale: Strong and perfect after-sales service network, there are 9 customer service centers in major regions of China, each center has professional service engineers, a total of more than 50 people, quickly and timely solve problems in after-sales service, such equipment start-up debugging, and troubleshooting.

If you need, please feel free to contact us for more information. Email: shanli@hzsljh.com
