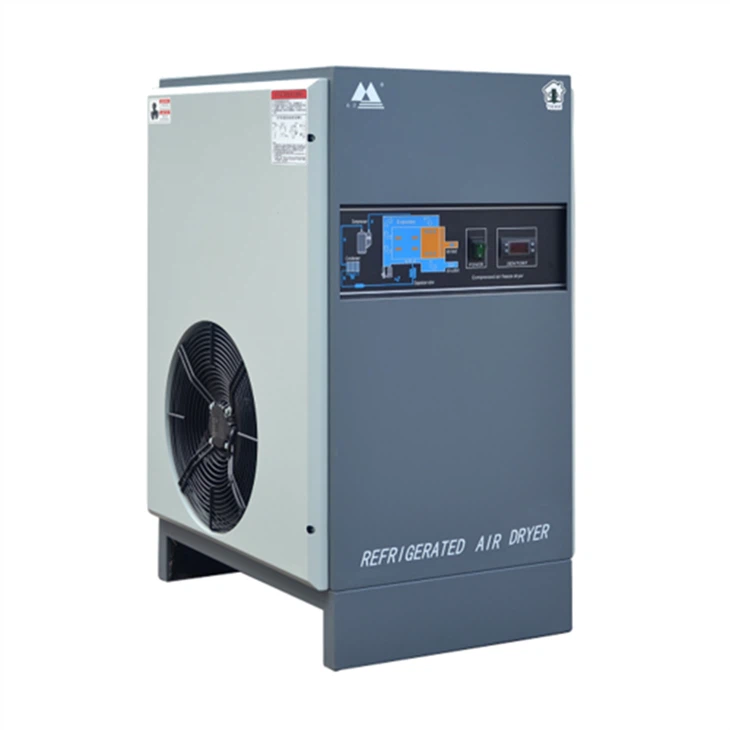

Industrial Air Dryer Manufacture
Products Video
Products Description
Product Characteristics
● R22 refrigerant and tube heat exchanger are used for more than 80 cubic meters; the gas-liquid separator adopts a patented three-stage separation method of "direct collision separation, low-speed centrifugal separation and stainless steel wire mesh demisting separation", which will remove 99.9% of the liquid The moisture is separated from the cooled compressed air to prevent the secondary evaporation of moisture and ensure the low dew point quality of the finished gas;
Working Principle
Refrigerated compressed air dryers work by lowering the temperature of compressed air to dew point which causes water vapor to condense into liquid form that can be easily separated from the air stream. The process involves passing hot and moist compressed air through a heat exchanger where it is cooled using refrigerant gas. The cooled air is then passed into a moisture separator where the condensed water droplets are trapped, removing them from the air stream. The dry compressed air is then reheated to about room temperature and sent to its final destination.
The use of refrigerated compressed air dryers has numerous benefits, including increased productivity, reduced equipment maintenance costs, and improved product quality. They are also energy-efficient because they require less energy to operate than desiccant dryers which use heat to regenerate the drying media. Additionally, they require little maintenance as compared to other types of dryers and are easy to install. Overall, refrigerated compressed air dryers are an essential investment for any business that aims to optimize its compressed air system.
Products Specification
(1)Normal temperature refrigerated air dryer
Applicable Working Conditions
|
Max inlet temp |
60°C |
Pressure dew point |
2℃~10℃ |
|
Environment temperature range |
5°C-50°C |
Cooling mode |
Air-cooled |
|
Pressure range |
0.6-1.6Mpa ( 0.5-12Nm³/min ) |
Cryogen |
0.5~2 Nm/min is R134a, 3~12Nm3/min is R410a， |
|
0.6-1.0 Mpa (15Nm³/min and above ) |
15~80Nm/min is R407C, 80 Nm/min and above is R22 |
Design Working Conditions
|
Inlet air temperature |
38°C |
Working pressure |
0.7Mpa |
|
Ambient temperature |
38℃ |
Cooling water temperature |
≤32℃ |
Air dryer for compressor refrigerated /industrial air dryer manufacture (plate fin type)
|
Item Model |
Air capacity |
Voltage |
Fan |
Air |
N.W |
L |
W |
H |
Air volume |
|
SDLF-0.5 |
0.65 |
220 |
40 |
G1" |
34 |
400 |
560 |
730 |
410 |
|
SDLF-1 |
1.2 |
220 |
40 |
G1" |
36 |
400 |
560 |
730 |
410 |
|
SDLF-2 |
2.5 |
220 |
50 |
G1" |
45 |
520 |
640 |
890 |
820 |
|
SDLF-3 |
3.6 |
220 |
85 |
G1" |
54 |
520 |
640 |
890 |
1000 |
|
SDLF-4.5 |
5.0 |
220 |
165 |
G1-1/2" |
60 |
540 |
700 |
1000 |
1850 |
|
SDLF-6 |
6.8 |
220 |
165 |
G1-1/2" |
65 |
540 |
700 |
1000 |
1850 |
|
SDLF-8 |
8.5 |
220 |
170 |
G2" |
76 |
610 |
900 |
1070 |
3700 |
|
SDLF-10 |
10.9 |
380/220 |
150 |
G2" |
88 |
610 |
900 |
1070 |
3700 |
|
SDLF-12 |
12.8 |
380/220 |
150 |
G2" |
88 |
610 |
900 |
1070 |
3700 |
|
SDLF-15 |
16 |
380/220 |
380 |
DN65 |
255 |
1170 |
920 |
1420 |
7600 |
|
SDLF-20 |
22 |
380/220 |
380 |
DN65 |
260 |
1170 |
920 |
1420 |
7600 |
|
SDLF-25 |
26.8 |
380/220 |
460 |
DN80 |
290 |
1170 |
920 |
1420 |
9000 |
|
SDLF-30 |
32 |
380/220 |
840 |
DN80 |
350 |
1400 |
1200 |
1600 |
12500 |
|
SDLF-40 |
43.5 |
380/220 |
1100 |
DN100 |
485 |
1400 |
1200 |
1600 |
15000 |
|
SDLF-50 |
53 |
380/220 |
920 |
DN100 |
800 |
1600 |
1200 |
1600 |
18000 |
|
SDLF-60 |
67 |
380/220 |
920 |
DN125 |
1000 |
1600 |
1400 |
1650 |
18000 |
|
SDLF-80 |
90 |
380/220 |
2200 |
DN125 |
1280 |
1800 |
1500 |
1770 |
30000 |
(2)High temperature refrigerated air dryer Applicable Working Conditions
|
Max inlet temp |
80°C |
Pressure dew point |
2℃~10℃ |
|
Environment temperature range |
5°C-50°C |
Cooling mode |
Air-cooled |
|
Pressure range |
0.6-1.6Mpa ( 0.5-12Nm³/min ) |
Cryogen |
0.5~2 Nm/min is R134a, 3~12Nm3/min is R410a， |
|
0.6-1.0 Mpa (15Nm³/min and above ) |
15~80Nm/min is R407C, 80 Nm/min and above is R22 |
Design Working Conditions of industrial air dryer manufacture
Model |
Air Capacity (Nm3/min) |
Voltage (V) |
Fan Power (W) |
Air connector dia | Net weight (Kg) |
Lenghth (mm) |
Wideth (mm) |
Height (mm) |
Air flow (Nm3/n) |
| SDLF-0.5HT | 0.65 | 220 | 80 | G1" | 54 | 400 | 560 | 730 | 820 |
| SDLF-1HT | 1.2 | 220 | 80 | G1" | 57 | 400 | 560 | 730 | 820 |
| SDLF-2HT | 2.5 | 220 | 100 | G1" | 66 | 520 | 640 | 890 | 1640 |
| SDLF-3HT | 3.6 | 220 | 135 | G1" | 79 | 520 | 640 | 890 | 2670 |
| SDLF-4.5HT | 5.0 | 220 | 250 | G1-1/2" | 86 | 540 | 700 | 1000 | 4650 |
| SDLF-6HT | 6.8 | 220 | 250 | G1-1/2" | 90 | 540 | 700 | 1000 | 4650 |
| SDLF-8HT | 8.5 | 220 | 270 | G2" | 99 | 610 | 900 | 1070 | 5700 |
| SDLF-10HT | 10.9 | 380/220 | 260 | G2" | 113 | 610 | 900 | 1070 | 5700 |
| SDLF-12HT | 12.8 | 380/200 | 260 | G2" | 113 | 610 | 900 | 1070 | 5700 |
Note: The above models use plate/plate-fin heat exchangers.
Products Details
Refrigerated compressed air dryers heat exchanger

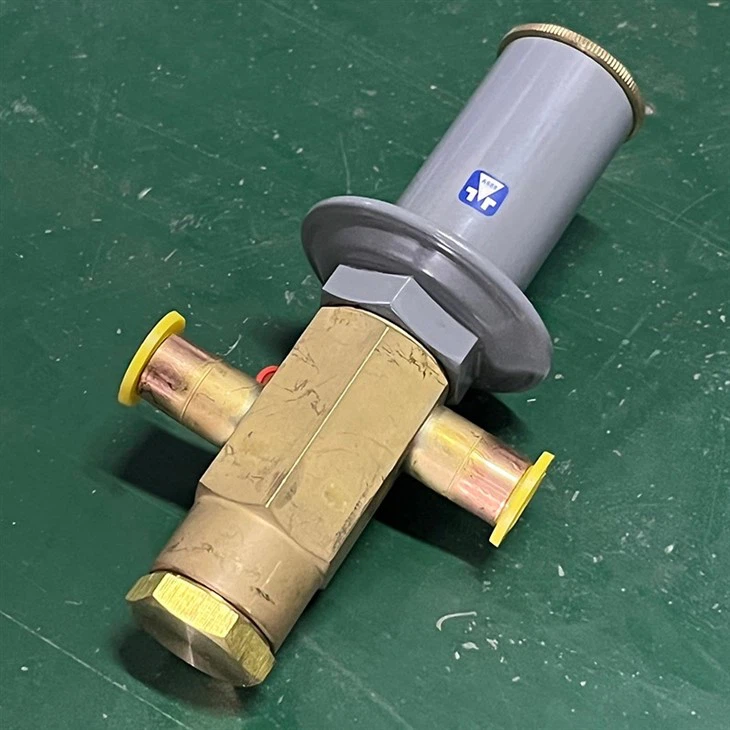

bypass-valve
expansion valve
Our Service
01. Pre-sale: The main responsibilities of the sales and Research Institute are to review the technical and business solutions, provide business and technical support to customers, and can accurately and timely solve all business and technical requirements before sales.
02. On sale: The main responsibilities of the Ministry of Commerce are order management and customer management. The core of order management is order delivery, business review of the scheme, and order. Timely solve the problems in the execution of the contract, and communicate with customers in order processing and delivery.
03. After-sale: Strong and perfect after-sales service network, there are 9 customer service centers in major regions of China, each center has professional service engineers, a total of more than 50 people, quickly and timely solve problems in after-sales service, such equipment start-up debugging, and troubleshooting.
If you need, please feel free to contact us for more information. Email: sales4@hzsljh.com
FAQ
Q1. Are you a trading company or manufacturer?
A: We are nearly 30 years professional industrial air dryer manufacturer specializing in air dryers.
And we trade our products with our clients directly.
Q2. Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable.
Q3. How about after-service?
A: We have 9 offices in China and also have an oversea after-service team.
Factory Tour
Our Advantages
1
Quality assurance
2
Price advantage
3
Factory wholesale
4
Good service
Our refrigerated air dryer advantage:
1) no compressed air consumption;
2)No valve wear;
3) It is not necessary to add or replace the adsorbent regularly;
4) low running noise;
5) Daily maintenance is relatively simple, as long as the automatic drain filter is cleaned on time;
6)The pre-treatment of the gas source is not high, and the general oil-water separator can be configured;
